Normal Value of Skull Base Angle Using the Modified Magnetic Resonance Imaging Technique in Thai Population

Siriporn Hirunpat*, Nat Wimolsiri and Nuttha Sanghan

Department of Radiology, Prince of Songkla University, Hat-Yai, Songkhla, Thailand

*Address for Correspondence: Siriporn Hirunpat, Department of Radiology, Prince of Songkla University, Hat-Yai, Songkhla, Thailand, Tel: 66818976907; Fax: 667442992; Email: hirsirip@hotmail.com

Dates: Submitted: 17 February 2017; Approved: 17 March 2017; Published: 20 March 2017

How to cite this article: Hirunpat S, Wimolsiri N, Sanghan N. Normal Value of Skull Base Angle Using the Modified Magnetic Resonance Imaging Technique in Thai Population. J Oral Health Craniofac Sci. 2017; 2: 017-021. DOI: 10.29328/journal.johcs.1001006

Copyright License: 2017 Hirunpat S, et al. This is an open access article distributed under the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

MRI = Magnetic Resonance Imaging, SE= Spin Echo

Platybasia is refers to flattening of the skull base, manifested by the increase in skull base angle. Several different techniques have been originally used in plain skull radiography such as the standard measurement using the angle formed between a line drawn from the nasion to the center of the sellar turcica, and a line drawn from the center of the sellar turcica down along the posterior aspect of the clivus. The normal values are slightly different between studies. Most literatures reported that the normal adult basal angle is between 125°-143° and the diagnosis of platybasia is suggested when the angle is more than 143° [1]. However, some authors recommended a slightly wider range of normal basal angle between 120°-150°, with an angle larger than 150° indicating platybasia [2].

Since MR imaging has supplanted plain skull films in routine head evaluation, Koenigsberg et al. [1], suggested the more convenient and reproducible modified MR imaging method of using the angle formed by a line extending across the anterior cranial fossa to the tip of the dorsum sellae, and a line drawn along the posterior margin of the clivus. This measurement yielded a normal value of basal angle range between 100°-127° with a mean of 117° (SD=6) and 95% confidence interval between 116°-118° for adults and 103°-125° with a mean of 114° (SD=5) and 95% confidence interval between 113°-115° for children.

It’s well known that cranial features different between races. Therefore, the normal value of the basal angle reported in Western literature may be different from the normal value measured in Eastern populations. The skull appearance has been commonly grouped into 3 major types according to racial ancestry, European (Caucasoid), Asian (Mongoloid) and African (Negroid). Thailand is an Asian country, and whether or not the normal value from Western literature can be accurately applied to our population has not yet been determined. To the best of our knowledge, we cannot find the normal value of basal angle using this modified MR imaging technique in Asians, which includes the Thai population. A published data about the basal angle measured on plain skull film, not by MRI, in Thai population revealed a rather wide range of normal value between 114°-151° (mean 126°, SD=8.1) in male and 109°-154°(mean 129° and SD=6.6) in female [3]. Another study from Japan by Nawata et al. revealed mean basal angle in male= 133° (SD=6.4) and in female= 133° (SD=6.6) [4,5]. Although Thai and Japanese are Asian populations, Thai population revealed slightly smaller mean basal angle compared with Japanese population with statistically difference [3].

The objective of our study was to determine the normal value of basal angle measured using the modified MR imaging technique in Thai population, which may represent Southeast Asia, and to compare with the standard value obtained by Koenigsberg et al. in a Western population.

This retrospective study was approved by our Institutional Review Board. The medical records and MRI scans of 200 adults (mean age 57.7 years old; age range 15-88 years old) including 90 men and 110 women and 50 children (mean age 7.1 years old; age range 1-14 years old) including 29 boys and 21 girls between January 2013 and May 2015 were included in the study.

Adult patients considered to have a normal skull base angle were randomly selected from the Picture Archive and Communication System (Synapse PACS, Fujifilm version 3.2.0). All patients underwent MR imaging on a 3 Tesla scanner (Achieva, Philips Medical Imaging System, Best, the Netherlands), equipped with an 8-channel head coil with SENSE factor or on a 1.5 Tesla (Ingenia, Phillips, the Netherlands), equipped with a 15-channels head coil. Patients with tumors or clinical conditions that may be related to abnormal basal angle, such as craniofacial anomalies, osteogenesis imperfecta, craniocleidodysostosis, Chiari malformations, Hurler’s disease, Paget disease, osteomalacia, rickets, rheumatoid arthritis, neurofibromatosis, infection and trauma of the skull base were excluded from the study.

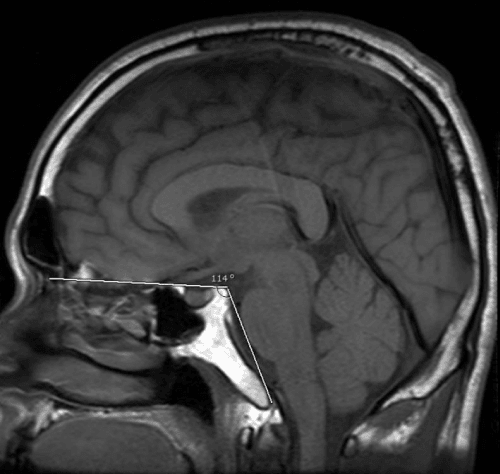

The modified MR imaging method measured the angles formed by a line extending across the anterior cranial fossa to the tip of the dorsum sellae and another line drawn along the posterior margin of the clivus in mid sagittal SE T1 weighted image (Figure 1) by Reader 1 (a senior radiologic resident) and Reader 2 (a neuroradiologist with 21 years’s experience).

The mean values in the adult populations in different age ranges (16-25, 25-60, and > 60 years old) and in the child population (≤ 5, 6-10 and 11-15 years old) were analyzed by the ANOVA test. The mean values in the male and female populations in the same age groups were analyzed by two sample t-tests. Inter-observer correlation was evaluated by the Pearson correlation coefficient and Bland-Altman plot. Overall mean values from both observers were determined. Statistical analysis was performed using R program version 3.2.2, R Core Team (2015).

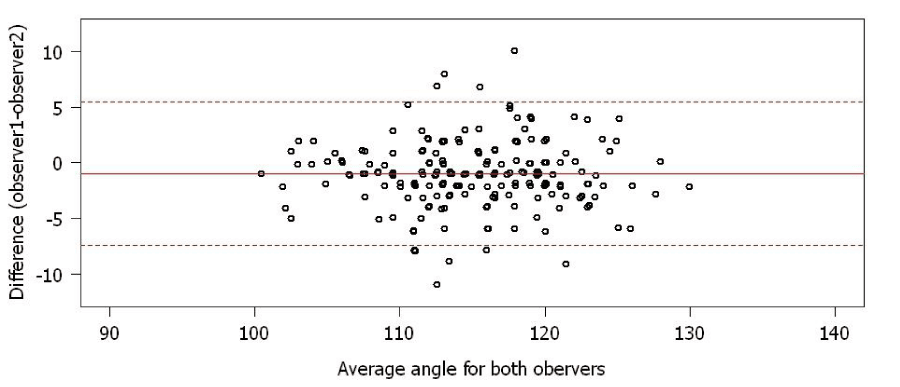

Mean skull base angle obtained from 200 adults by observer 1 was 114.5° (range: 100°-129°, SD=5.9, 95% CI=113.7°-115.3°) and mean skull base angle obtained from observer 2 was 115.5° (range: 101°-131°, SD=5.9, 95% CI=114.7-116.3). The overall mean skull base angle obtained from both observers was 115° (range: 100.5°-130°, SD=5.7, 95% CI=114.2°-115.8°). There was good agreement between the 2 observers with a Pearson inter-observer correlation coefficient of 0.85. Furthermore, good correlation between both observers was demonstrated by the Bland-Altman plot due to the small differences between the two observers at the mean of 2.49°, SD=2.26 (Figure 2).

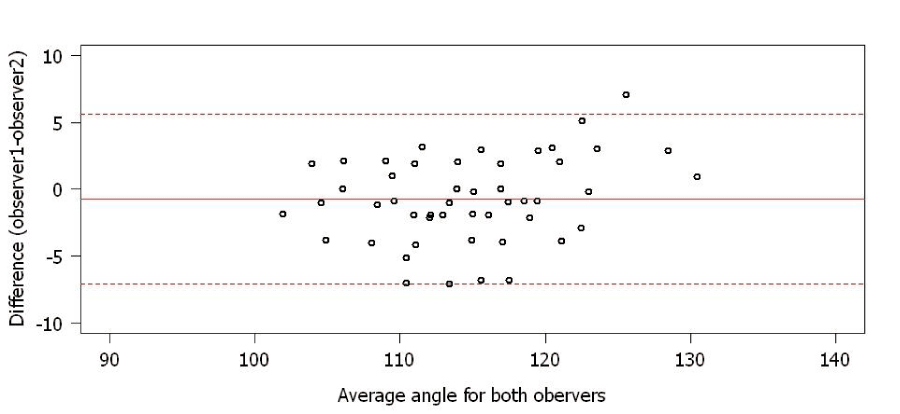

There was no significant difference between male and female groups in observer 1 with P value=0.238 and in observer 2 with P value=0.93. There was also no difference among the three age groups under 26 years old, between 26 and 60 years old, and more than 60 years old in both observers with P value =0.328 and =0.475 in observer 1 and 2, respectively. Mean skull base angle obtained from 50 children by observer 1 was 114.3° (range: 101°-131°, SD=7, 95% CI=112.4°-116.3°), and mean skull base angle obtained from observer 2 was 115.1° (range: 103°-130°, SD=6.0, 95% CI=113.4-116.8). The overall mean skull base angle obtained from both observers was 114.7° (range: 102°-130.5°, SD=6.3, 95% CI=112.9°-116.5°). Good agreement between both observers was demonstrated by the Bland-Altman plot due to the small differences between the two observers at the mean of 2.6°, SD=1.91 (Figure 3).

There was no significant difference among the three age groups under 6 years old, between 6 to 10 years old and more than 10 years old (P value=0.401 in observer 1 and P value=0.42 in observer 2. The mean skull base angle also revealed no significant difference between adult and pediatric groups (P value=0.865 in observer 1 and 0.681 in observer 2).

Using the modified MR imaging technique, the mean skull base angle of Thai adults (115° SD=5.7, 95% CI=114.2°-115.8°) was slightly smaller than the mean skull base angle measured from the western population by Koenigsberg et al. [1] (117 °, SD=6, 95% CI 116°-118°) (Table 1).

These findings may be explained by the smaller stature of Thai population compared with the Western population.

Koenigsberg suggested that the normal values of the mean skull base angle were between 105°-127° for adults and 104°-124° for children by using the mean skull base angles ± 2SD. We also used the similar hypothesis and found basal angle range of 103.6°-126.4° with the real maximum basal angle obtained from observer 2 in our study was 131°. These values may be used as a guide for the potential range of normal skull base angles in Thai population, and possibly also the Southeast Asian population. When measured using the modified MR imaging technique, a basal angle of greater than 131° may be associated with a diagnosis of platybasia.

Unlike the results from the Western population, no significant differences in the mean skull base angles between adults and children were found in our study. Due to the small number of children in our study, the obtained mean skull base angles in children (114.7°, SD=6.3, 95% CI=112.9°-116.5°) may not be a good representative value of the children population in Thailand. However, only minimal differences were found in mean skull base angle among our child population when compared with a study from the Western (114°, SD=5, 95% CI= 113°-115°). These findings may probably be explained by the rather similar stature of children in all parts of the world.

Platybasia and basilar invagination often appear together [2,6], and they can occur in a variety of congenital craniofacial anomalies, such as osteogenesis imperfecta, craniocleidodysostosis and Arnold-Chiari malformation. They can also occur in acquired disorders, such as Paget disease, osteomalacia, rickets, senile atrophy, hyperparathyroidism, localized bone destruction, and trauma. Clinical manifestations of basilar invagination include signs and symptoms of brainstem and upper cervical cord compression or disturbances of CSF circulation causing hydrocephalus [1,7]. When appearing as an isolated finding, platybasia is not clinically important and most patients are asymptomatic [1]. No treatment is indicated unless there is impingement or compression of brain or nerve roots. In some patients, posterior decompression, usually in conjunction with fusion of the skull to the upper cervical spine may be required.

The mean adult skull base angle measured using the modified MR imaging method in Thai population was slightly smaller than in a Western population, while the mean skull base angle of children was quite similar. The normal basal angle ranges in adults of between 103.6°-126.4° may be used as a guide for the potential range of normal skull base angles in the Thai population and possibly also the Southeast Asian population.
